TRI-SHiELD Depth Filtration Media

New Depth Filtration Media Technology

Shield your downstream equipment with our new TRI-SHiELD Media technology -Tri-Lobal Spiral High Efficiency Long-Life Depth Filtration Platform

Depth Filtration 2.0

  • The TRI-SHiELD™ media platform has been developed to create superior depth filtration technology to be used in a wide variety of gas and liquid applications.
  • Highly engineered blend of fibers are thermally bonded in multiple unique spiral layers of advanced treated media to provide optimal efficiency, dirt loading, and a reduced cost of ownership to shield downstream equipment.
  • Our blend of Tri-Lobal and synthetic fibers provides a larger effective surface area per media volume and less flow resistance than traditional fibers resulting in extremely high removal efficiencies.

The TRI-SHiELD Advantage

High Contaminant Loading | High Efficiency | High Adaptability

FEATURES BENEFITS ADVANTAGE
Engineered blend of Tri-Lobal and cylindrical fibers Larger effective surface area per media volume and less flow resistance than traditional fibers. High removal efficiencies with up to 15X fewer contaminants downstream of the gas filtration solution.
Proprietary media recipes Greater void space compared to traditional fiber blends providing up to 25% less pressure drop at start-up.Reduced filter change-outs for gas applications with up to 20% more dirt holding capacity at same recommended change-out.
Customizable media layers Built to suit challenging applications Filtration flexibility
Coreless designs Economical shipping costs Easier disposal
Polyester and polypropylene with adhesive free construction High chemical compatibility. Silicone Free. Standard offerings built to suit a wide range of applications
Structural rigidity of the TRI-SHiELD cartridges Needle punched media layers for a stronger bond between staple fibers and binder fibers during cartridge fabrication Less media compression from differential pressure.

Product Range

Filtration flexibility | Suitable for a wide range of applications

TRI-SHiELD™ Gas Range

The TRI-SHiELD patented media technology has been used to develop a wide range of dry gas, filter separator and gas coalescing cartridges for the oil & gas filtration applications.

TRI-SHiELD Gas Range Applicaton

Common Gas Applications: Compressor, Suction/Discharge, Custody Transfer Meters, Gas gathering, Glycol Dehydration, Amine Treating, Molecular Sieve Dehydration, Residue Gas, Fuel Gas Conditioning, Syn Gas Cleanup, Mercury Bed Protection, Cryogenic Plant Inlet, Landfill Gas, Catalyst protection, Lo-Nox Burner protection, Propane Re-gasification, Metering Stations, Catalyst protection, PSA systems, Utility & Instrument Air

TRI-SHiELD™ Liquid Range

The TRI-SHiELD patented media technology has been used to develop a wide range of liquid filtration cartridges used in oil & gas, chemical, food & beverage and general industrial applications.

TRI-SHiELD Liquid Range Application

Common Liquid Applications: Amine, Glycol, NGL/Hydrocarbon Liquids, Acids & Alkali, Solvents, Catalyst Recovery, Produced water disposal, Lubricants, Cooling Water, RO Pretreatment, Inks, Adhesives, Fabric Coatings, Paints, Dyes, Product Polishing, Bulk Chemical Filtration, Pulp & Paper, Waste Water, Process Water

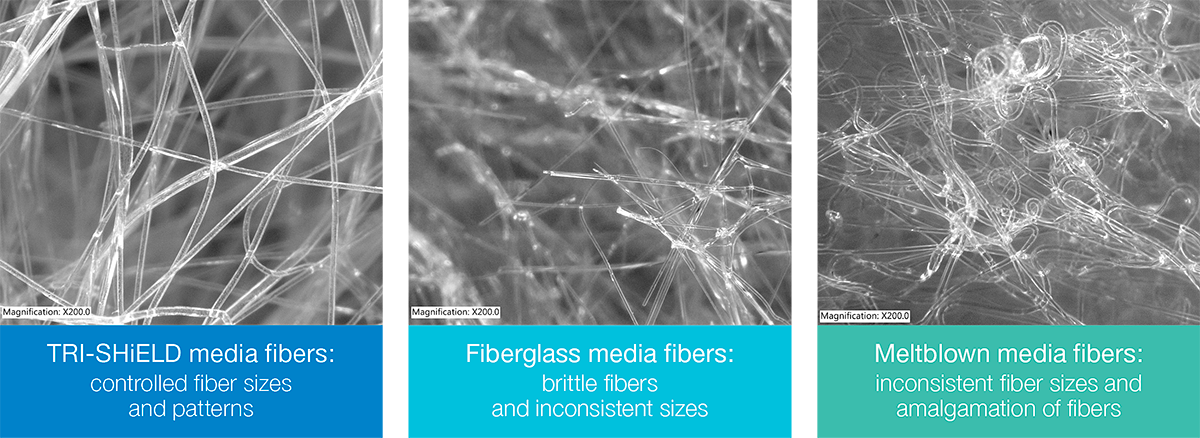

Media Makes the Difference

Engineered Media | Proprietary recipes | High efficiency & dirt loading

technology

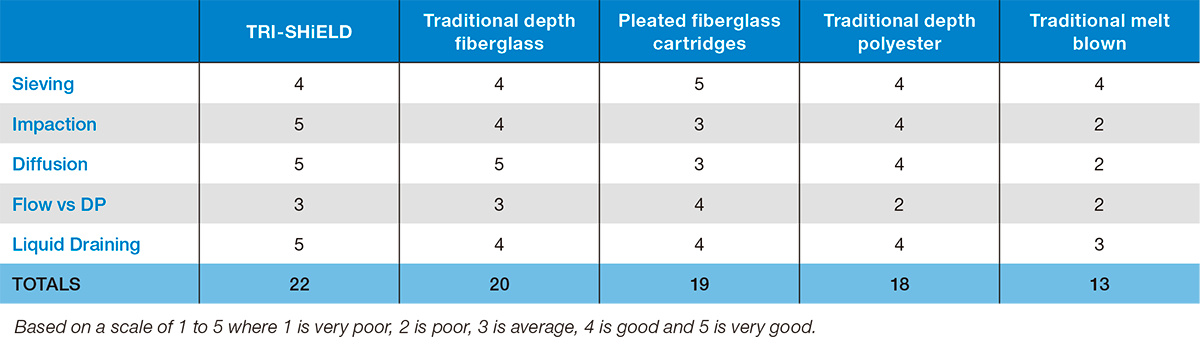

table
fibers-graphics
range
previous arrow
next arrow

Total Filtration Solutions

Housings + Cartridges + Systems = Total Filtration Solutions

We design cartridges with the housing in mind to optimize the performance of the total solution. TRI-SHiELD cartridges can be used with a wide range of housings we manufacture.

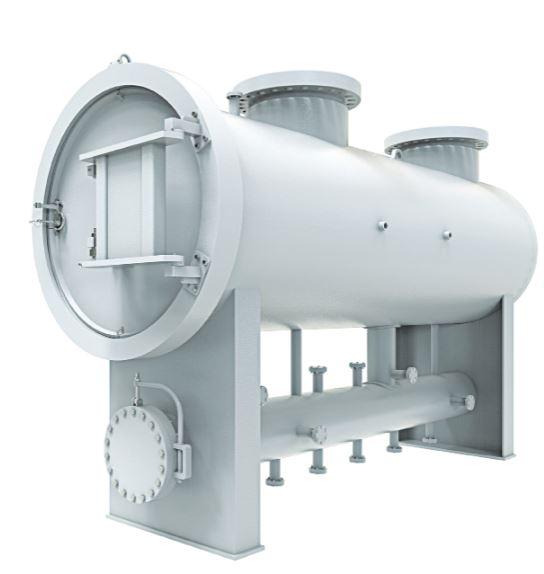

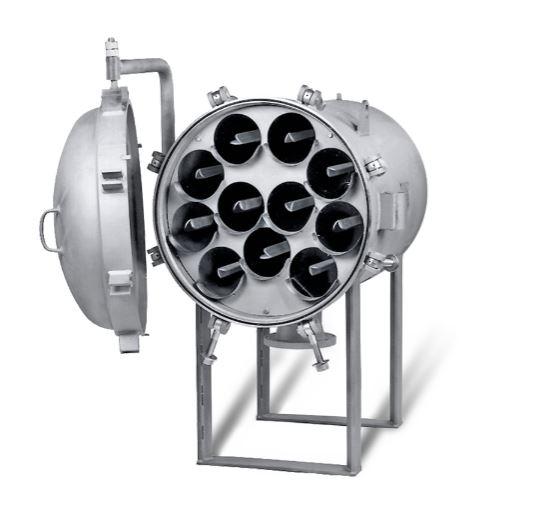

SentinelH Series Horizontal Multi-Cartridge
Gas Filter Separators Gas Reverse Flow Coalescers Horizontal Gas Coalescers Liquid Filtration Housings

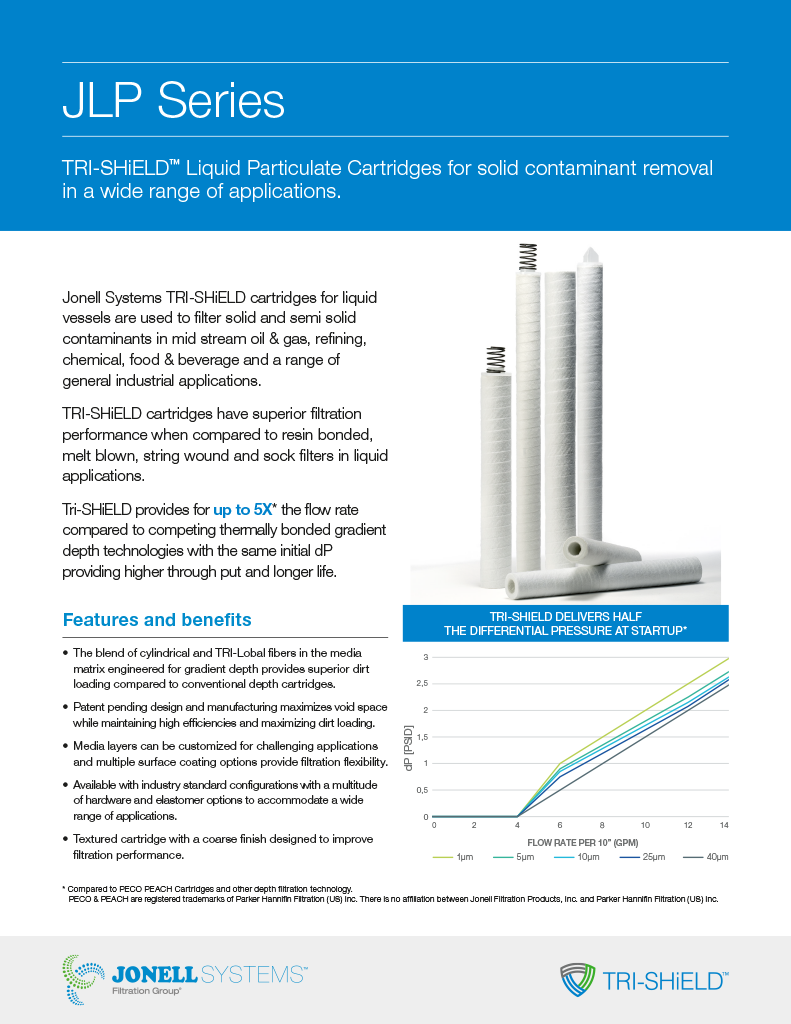

Brochures

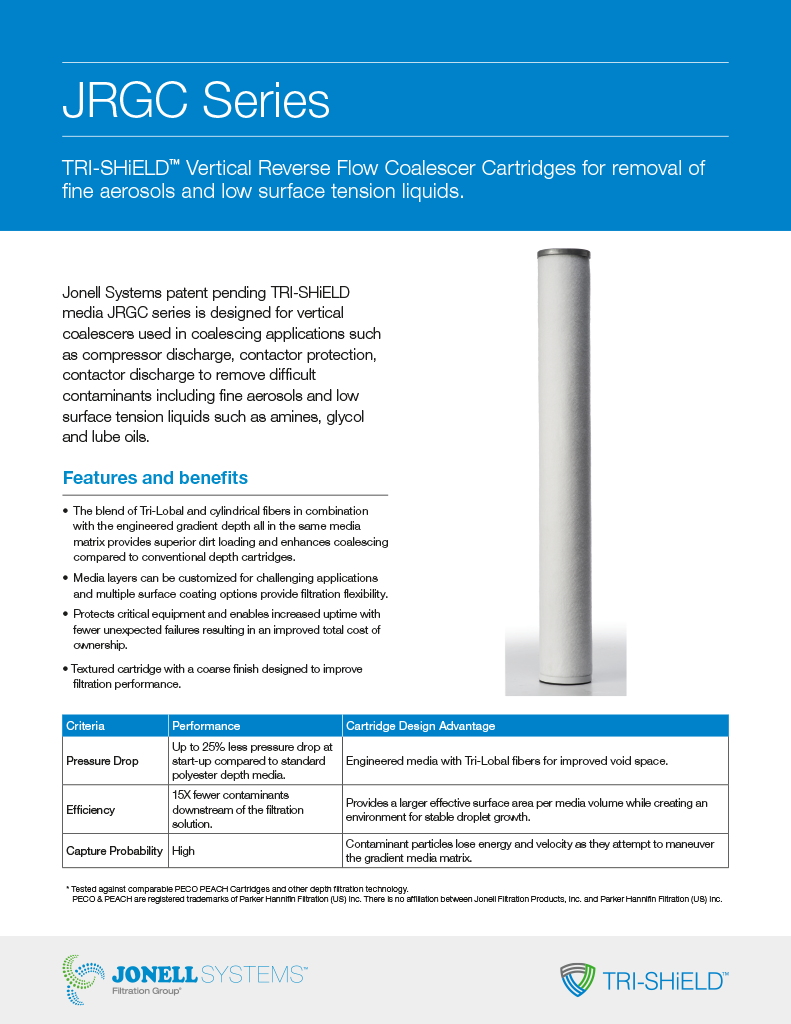

TRI-SHiELD Oil & Gas & Liquid Filtration & Separation

Explore our full range of cartridges to suit applications across oil & gas and refining industries.

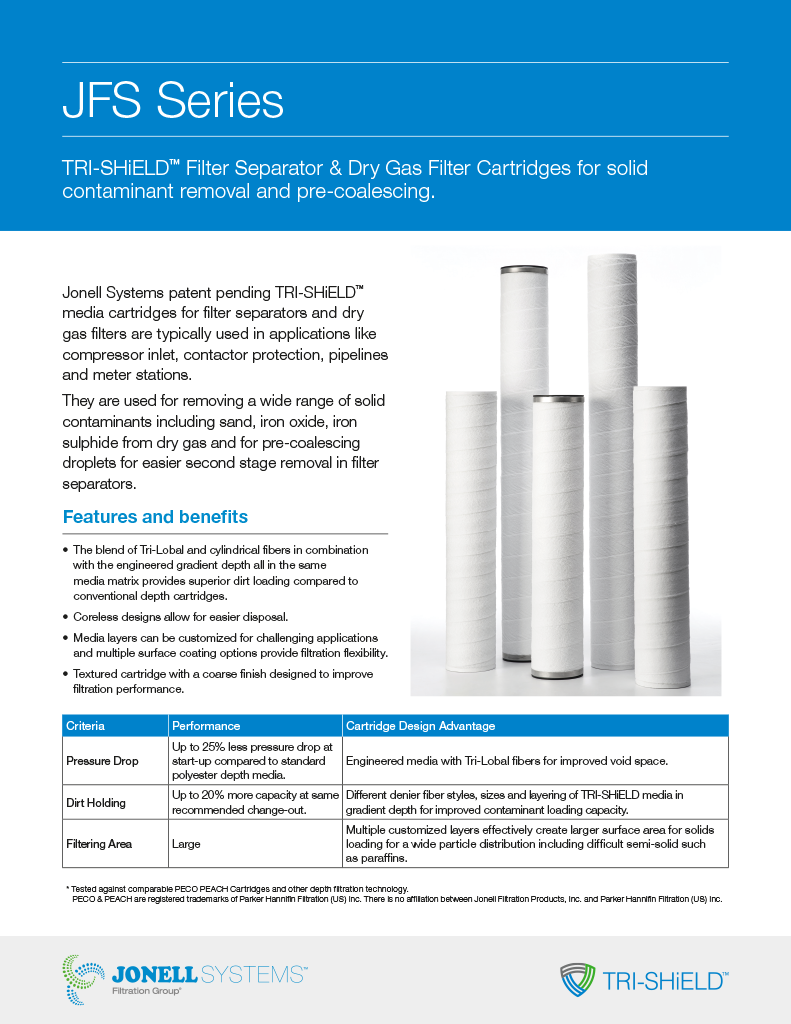

TRI-SHiELD Tri-lobal Spiral Depth Filtration Media

Find out more about the TRI-SHIELD media technology and its benefits.

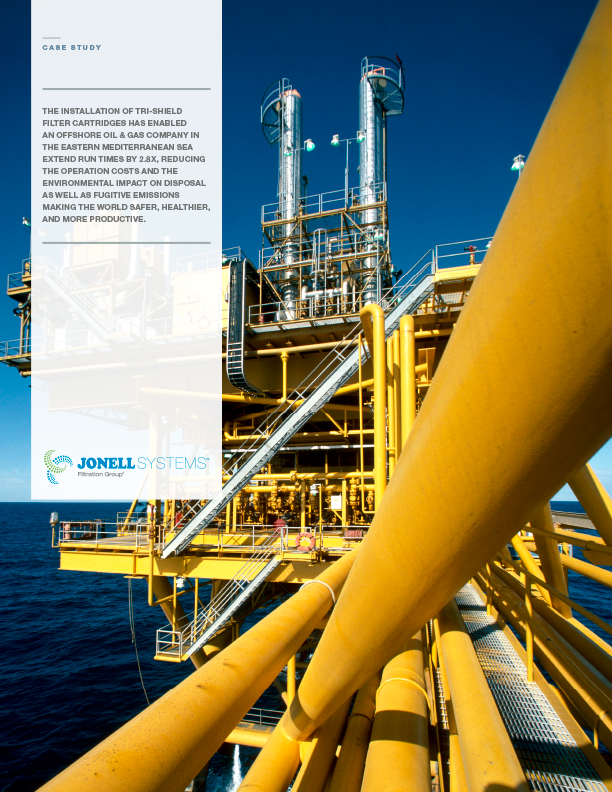

Case Study

TRI-SHiELD recude operations costs

 TRI-SHiELD cartridges reduced the operations costs in an offshore platform.


TRI-SHiELD Gas Filter Separators

Gas Filter Separators

TRI-SHiELD Gas Reverse Flow Coalescers

Gas Reverse Flow Coalescers

TRI-SHiELD Horizontal Gas Coalescers

Horizontal Gas Coalescers

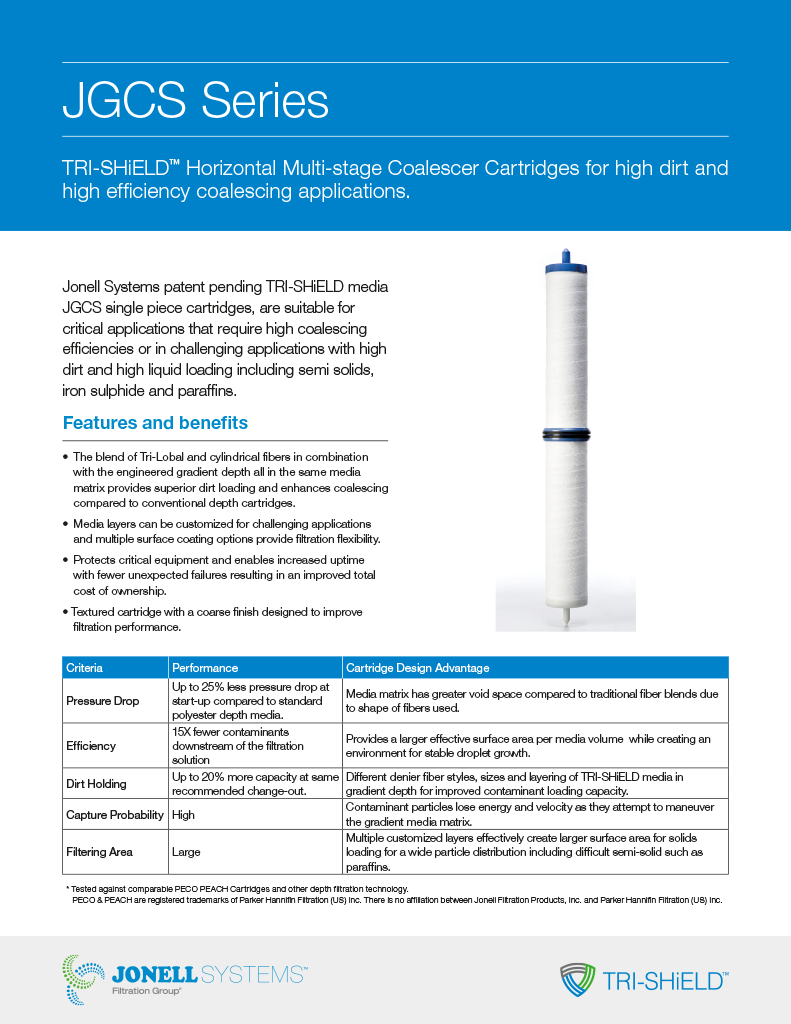

TRI-SHiELD Horizontal JGCS Gas Coalescers

Horizontal Gas Coalescers

TRI-SHiELD Liquid Filtration Housings

Liquid Filtration Housings

Wondering if TRI-SHiELD is right for your application?

Get in touch with Jonell Systems today to find about about which TRI-SHiELD cartridge will be suitable for your application.

Approaching filtration with a process optimization mindset,

  • our wide solution range, now including TRI-SHiELD,
  • vast industry experience and
  • application knowledge

allows us to recommend the right solution for your filtration needs.
